1.Production introduction:
Walter - Deutz marine series, engine is selected from Weifang Weichai Deutz Diesel Engine Co., Ltd. Weichai Deutz is a joint venture products between German Deutz and China Weichai Group, mainly produces WP4 WP6 series of Deutz brand engines, Germany Deutz is a world-class diesel engine manufacturer, founded in 1864, created by the inventor of the four-stroke gas engine, Mr. Otto and Langen. Through continuous improvement and validation of 130 years , DEUTZ has become one of the world's largest diesel engine manufacturer in the world. DEUTZ engine with its excellent design, excellent quality and variety of the flexibility broadly successful in the engine area

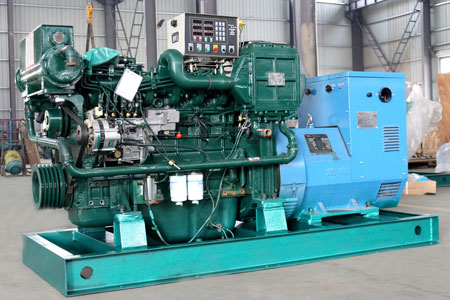

2.The parameters of YUCHAI marine Generator Sets:
| Model Number | Ootput Power | Engine Type/ Power | Piston Stroke (mm) | Displacement (L) | Fuel Consumption (g/kw.h) | Generator Model | Overall Dimensions L *W*H (mm) | Weight (kg) | |||
| KW | KVA | ||||||||||
| CCFJ-30 | 30 | 37.5 | YC4108C/40 | 108*125 | 6.49 | ≤210 | MP-H-30-4 | 1FC2 186-4 | HW4-30 | 1700*770*980 | 780 |
| CCFJ-40 | 40 | 50 | YC4108ZC/50 | 108*125 | 6.49 | ≤210 | MP-H-40-4 | 1FC2 221-4 | HW4-40 | 1750*770*980 | 800 |
| CCFJ-50 | 50 | 63 | YC6108CA/63 | 108*125 | 6.87 | ≤210 | MP-H-50-4 | 1FC2 222-4 | HW4-50 | 1800*780*1150 | 810 |
| CCFJ-64 | 64 | 80 | YC6108ZLCA/90 | 108*125 | 6.87 | ≤210 | MP-H-64-4 | 1FC2 223-4 | HW4-64 | 1800*780*1250 | 1180 |
| CCFJ-75 | 75 | 94 | YC6108ZLCA/90 | 108*125 | 6.87 | ≤210 | MP-H-75-4 | 1FC2 224-4 | HW4-75 | 1800*780*1250 | 1200 |
| CCFJ-90 | 90 | 113 | YC6108ZLCB/112 | 108*125 | 6.87 | ≤210 | MP-H-90-4 | 1FC2 281-4 | HW4-90 | 2200*900*1350 | 1480 |
| CCFJ-100 | 100 | 125 | YC6108ZLCB/112 | 108*125 | 6.87 | ≤210 | MP-H-100-4 | 1FC2 281-4 | HW4-100 | 2200*900*1350 | 1500 |
| CCFJ-120 | 120 | 150 | YC6M195C/143 | 120*145 | 9.84 | ≤210 | MP-H-120-4 | 1FC2 282-4 | HW4-120 | 2450*1000*1500 | 1800 |
| CCFJ-150 | 150 | 188 | YC6M240C/177 | 120*145 | 10.34 | ≤210 | MP-H-150-4 | 1FC2 283-4 | HW4-150 | 2550*1000*1500 | 1850 |
| CCFJ-200 | 200 | 250 | YC6T375C/275 | 145*165 | 14.86 | ≤205 | MP-H-200-4 | 1FC2 284-4 | HW4-200 | 3200*1350*1800 | 3000 |
| CCFJ-250 | 250 | 313 | YC6T400C/294 | 145*165 | 16.35 | ≤200 | MP-H-250-4 | 1FC2 351-4 | HW4-250 | 3300*1350*1800 | 3200 |
3.Note: The parameters listed above are for reference only and should not be taken as the basis for orders. We also accept all kinds of special orders.
