1.Product introduction:

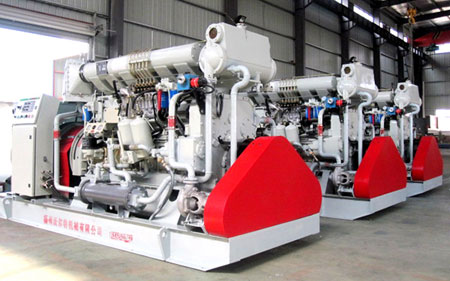

Walter-Zibo series set choose the large power diesel engine from ZIBO diesel generator company.It has many features: Convenient operation,low fuel consumption,large power,etc.The frequency of products are 50HZ and 60HZ.
2.Parameters of zichai:
| Model Number | Ootput Power | Engine Type/Power | Piston Stroke (mm) | Displacement (L) | Fuel Consumption (g/kw.h) | Generator Model | Overall Dimensions L *W*H (mm) | Weight (kg) | ||
| KW | KVA | |||||||||
| CCFJ-200 | 200 | 250 | Z6170ZLD-2/275 | 170/200 | 16 | ≤198 | MP-H-200-6 | TZHWX-200-6 | 3900×1300×1900 | 5800 |
| CCFJ-250 | 250 | 312.5 | Z6170ZLD-1/300 | 170/200 | 16 | ≤198 | MP-H-250-6 | TZHWX-250-6 | 3900×1300×1900 | 5800 |
| CCFJ-300 | 300 | 375 | Z6170ZLD/330 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX-300-6 | 4000×1300×1900 | 5800 |
| CCFJ-350 | 350 | 437.5 | Z6170ZLD-10/400 | 170/200 | 16 | ≤198 | MP-H-350-6 | TZHWX-350-6 | 4000×1300×1900 | 5800 |
| CCFJ-400 | 400 | 500 | Z6170ZLD-6/450 | 170/200 | 16 | ≤198 | MP-H-400-6 | TZHWX-400-6 | 4000×1300×1900 | 5800 |
| Model Number | Ootput Power | Engin Type/Power | Piston Stroke (mm) | Displacement (L) | Fuel Consumption (g/kw.h) | Generator Model | Overall Dimensions L*W*H(mm) | Weight (kg) | ||
| KW | KVA | |||||||||
| CCFJ-300 | 300 | 375 | Z8170ZLD-2/400 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX-300-6 | 4500×1400×2200 | 7100 |
| CCFJ-350 | 350 | 437.5 | Z8170ZLD-2/400 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX-350-6 | 4500×1400×2200 | 7100 |
| CCFJ-400 | 400 | 500 | Z8170ZLD-1/441 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX-400-6 | 4500×1400×2200 | 7100 |
| CCFJ-450 | 450 | 562.5 | Z8170ZLD-6/600 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX-450-6 | 4500×1450×2300 | 7900 |
| CCFJ-500 | 500 | 625 | Z8170ZLD-6/600 | 170/200 | 16 | ≤198 | MP-H-300-6 | TZHWX500-6 | 4500×1450×2300 | 7900 |
4.Note:
1.The parameters listed above are for reference only and should not be taken as the basis for orders.
2.We also accept all kinds of special orders.
